Neon strip 2835 led light warm white CRI93 IP67 for indoor and outdoor
Description:
- LEDLINE ASTON 1615 WHT, DC24V. Cross section size16mmx15mm/0.63" x 0.59" (WxH), which is vertical bending with radius of 120mm / 4.72".
- IP67 protected, UV resistant, chemical resistant and DIY connectors for indoor & outdoor
solutions. Very easy to cut & reconnect on site.
- 2-Step MacAdam bin and dot free lighting guarantee the most excellent performance over the rated lifetime.
Quick Detail:
- Voltage: DC24V
- Neon Size: 16mm*15mm
- Bending Direction: Top bending (vertical bending)
- Cutting Interval: 50mm
- Max Wattage: 10W/m
- CRI: Ra93
- CCT: 2700K
- Max Run Lenghth: 5w/27m 10w/17m 15w/14m
- IP Rating: IP67
- Endcap Option: Injected endcap, Silicone endcap
- CE, RoHS, TUV, UL compliant
- 5 Year Warranty
Specifications:
| Model | LEDLINE ASTON 1615 WHT -27 |
| SMD Type | 2835 |
| LEDs/m | 120LEDs/m |
| LED Power | 5/10/15W/m |
| LED Color | 2700K |
| Input Voltage | DC24V |
| Ra | >93 |
| Neon Dimension | 16mm*15mm |
| Unit cut | 50mm |
| IP Grade | IP67 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
Download Datasheet: ASTON 1615 WHT.pdf
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of LEDLINE ASTON 1615 WHT is 240mm, do not bend to side direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
Applications:
LEDLINE ASTON 1615 WHT-27 is suitable for both indoor and outdoor applications such as facade lighting, contour lighting, landscape lighting, retail shops, gallery, show-booth and exhibition room. Ideal for architectural lighting, coves, object integration.Desired light effect in bar counter, restaurant, hotel and task lighting applications.

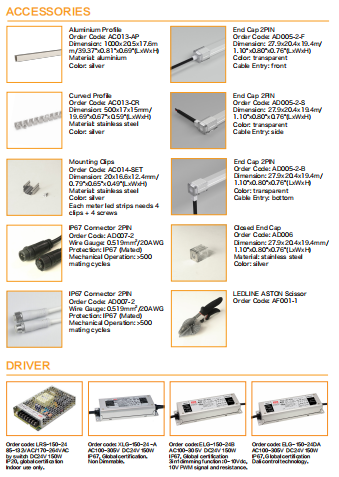

Whole set assessories:
FAQ:
Commercial CE RoHS Reach UL Certificate Outdoor Underwater IP68 Waterproof
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Product Tags:
|
|
2835 Silicone Neon Strip DC24V White Color IP67 Waterproof Top Bending Images
|
