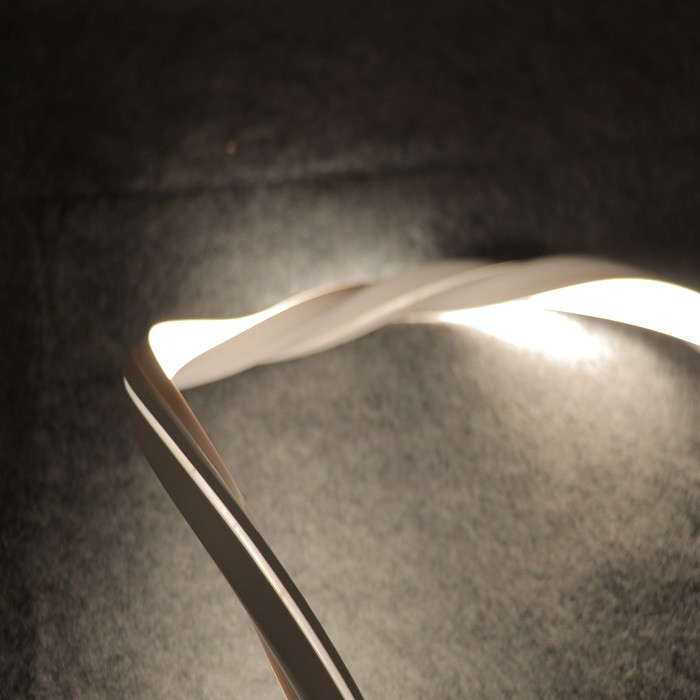

Top bending & Side Bending Twist Neon Flex CRI93 5 years warranty
Description:
- Flexible neon led strip, twistable, top and side bending led rope
- Ideal for Court lighting, signature lighting, Urban lighting.
- Easy to cut & reconnect on site
- Suitable for hotel, showing room, corridors, apartment, plaza, shopping mall.
Quick Detail:
· Voltage: DC24V
· Neon Size: 16mm*15mm
· Bending Direction: 3D Twisted Bending
· Cutting Interval: 50mm
· Max Wattage: 10W/m
· CRI: Ra93
· CCT: 5500K
· Max Run Lenghth: 5m
· IP Rating: IP67
· Endcap Option: Injected endcap, Silicone endcap
· CE, RoHS, TUV, UL compliant
· 5 Year Warranty
Specifications:
| Model | LEDLINE EVIS WHT |
| SMD Type | 2835 |
| LEDs/m | 120LEDs/m |
| LED Power | 10w/m |
| LED Color | 2700k/3000k/3500k/4000k/5000k |
| Input Voltage | DC24V |
| Ra | 93 |
| Neon Dimension | 16mm*15mm |
| Unit cut | 50mm |
| IP Grade | IP67 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
| Beam Angle | 120°
|
Download datasheet: EVIS.pdf
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of ERP LEDLINE ASTON 1615 WHT is 240mm, do not bend to side direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
Applications:
facade lighting
contour lighting
landscape lighting
retail shops
gallery
show-booth and exhibition room
Ideal for architectural lighting
FAQ:
Commercial CE RoHS Reach UL Certificate Outdoor IP67 Waterproof
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
